FELC ENDOSCOPIC LINEAR CUTTING STAPLERS

The Frankenman FELC Series has a reversed cartridge design, easy for ligation and dissection in narrow space, stronger cutting force, great reliability and unique anvil production technique, greater integrity allow stronger compression force for thicker tissue.

THE FEATURES

  • Asset 2 Reversed anvil
  • Asset 2 Integrated knife with self lubrication design
  • Asset 2 Widened ergonomic firing handle
  • Asset 2 Innovative anvil production technique
  • Asset 2 New design to achieve 45 degrees rotation with 3 level on both right & left side
Get In Touch

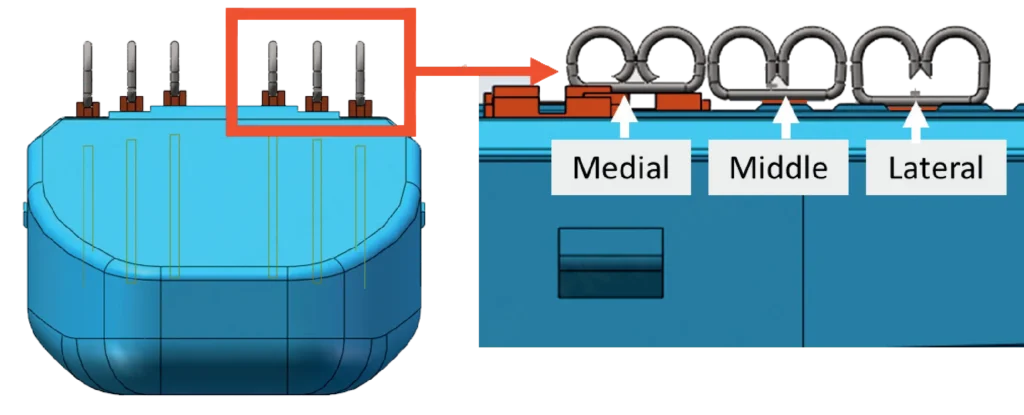

Pushing Staple Technology

Increased balance between hemostasis and blood perfusion in the anastomosis thanks to the new variable compression solution having more margin to maintain closure of the staple leg in all staple lines.

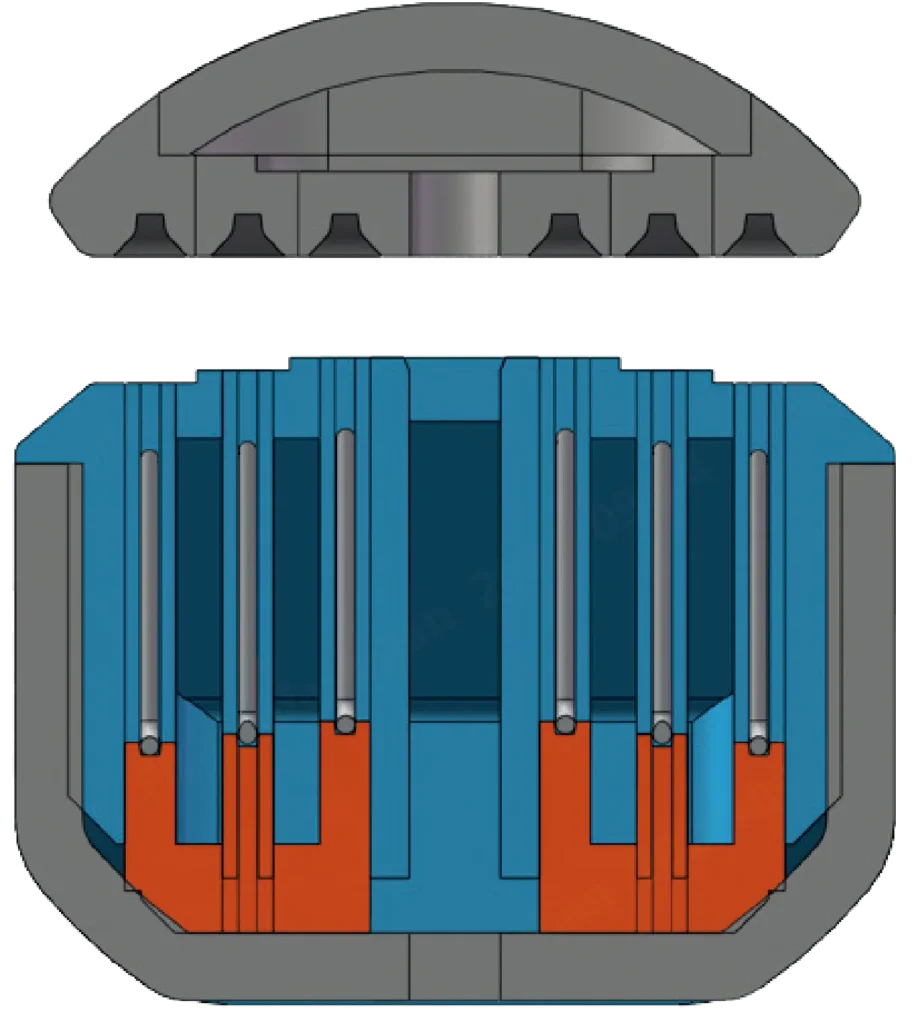

Different height pushers make
a different staple forming height, to get a strong anastomosis.

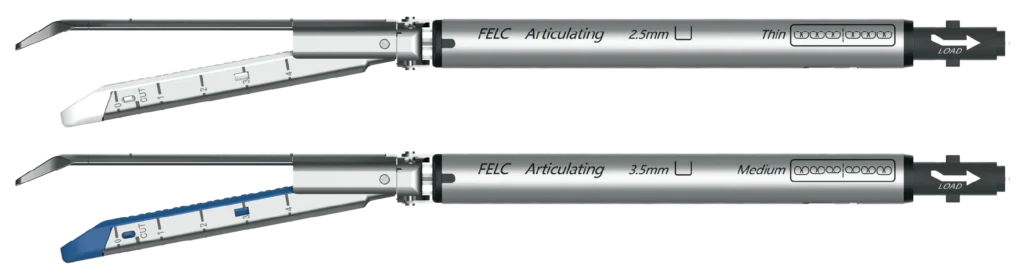

Articulated Curved Tip reloads

designed for enhanced visibility and ease of use for fine dissection and transection in limited spaces around target tissues and vessels

THE BENEFITS

  • Asset 2 Easy access to ligate and compress tissue & vessel in narrow space
  • Asset 2 Higher cutting strength and improved reliability; firing force is significantly reduced
  • Asset 2 Easier and convenient device firing
  • Asset 2 Robust anvil with stronger compression for the same tissue thickness
  • Asset 2 Easier ligation and anastomosis of tissue in narrow space

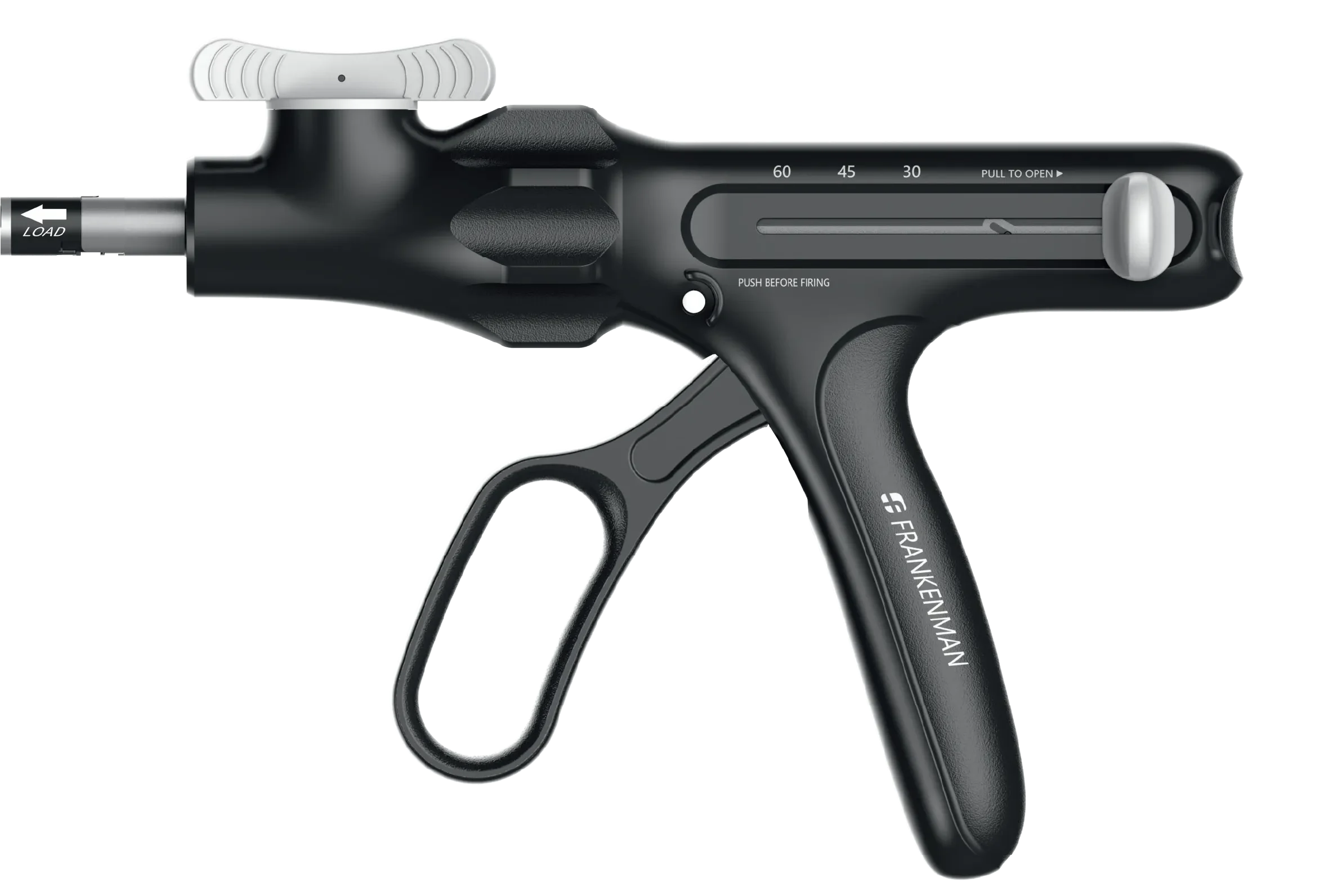

Curved handle end tip design

Easy release of device.

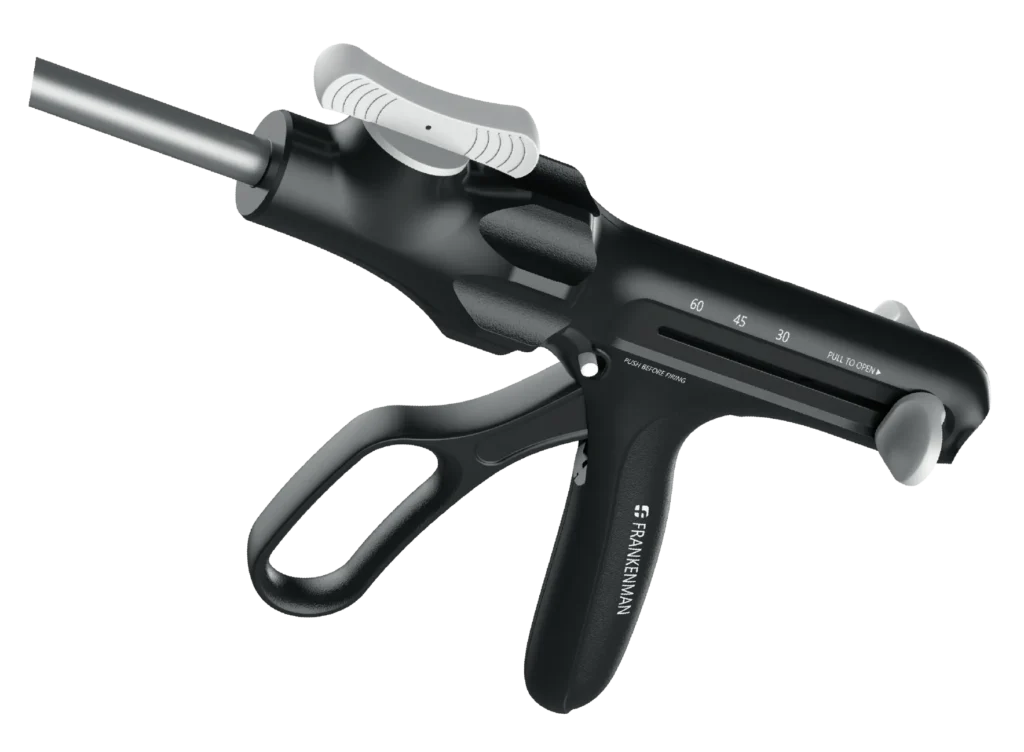

Widen ergonomic firing handle.

Easy and convenient firing of device.

Improved 45° rotation structure with 3 level both left and right.
Clear rotation level to handle ligation, dissection and anastomosis.

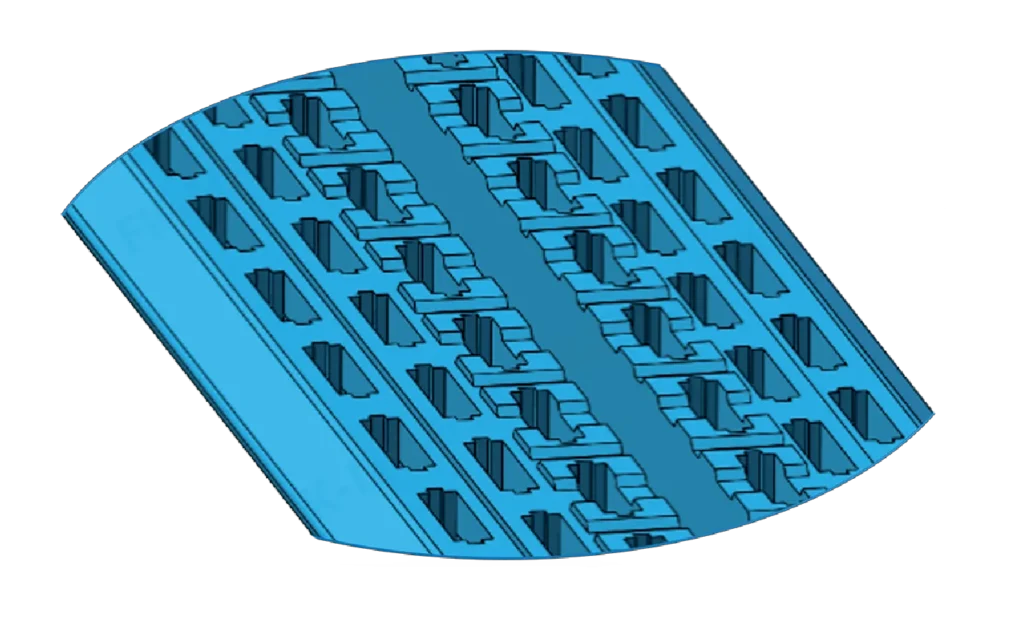

Wavy Grip Solution

The wavy surface of the reload holds the tissue firmly in place, preventing the slippage during the cutting process and retraction of the blade.

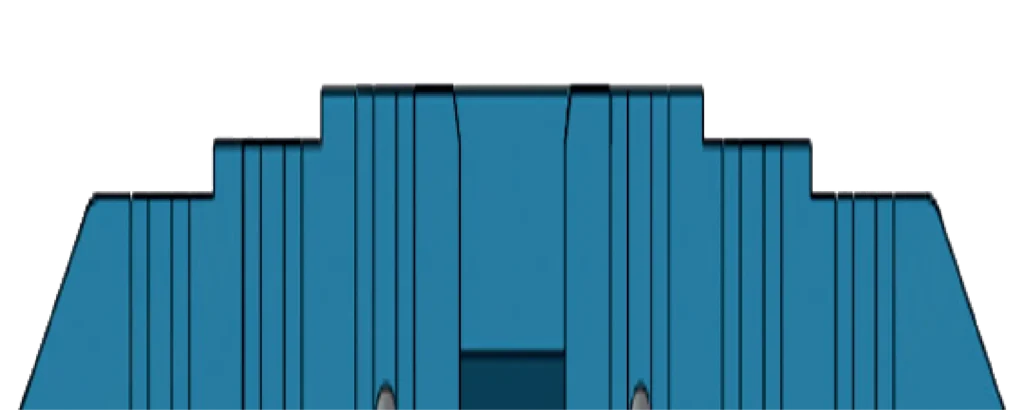

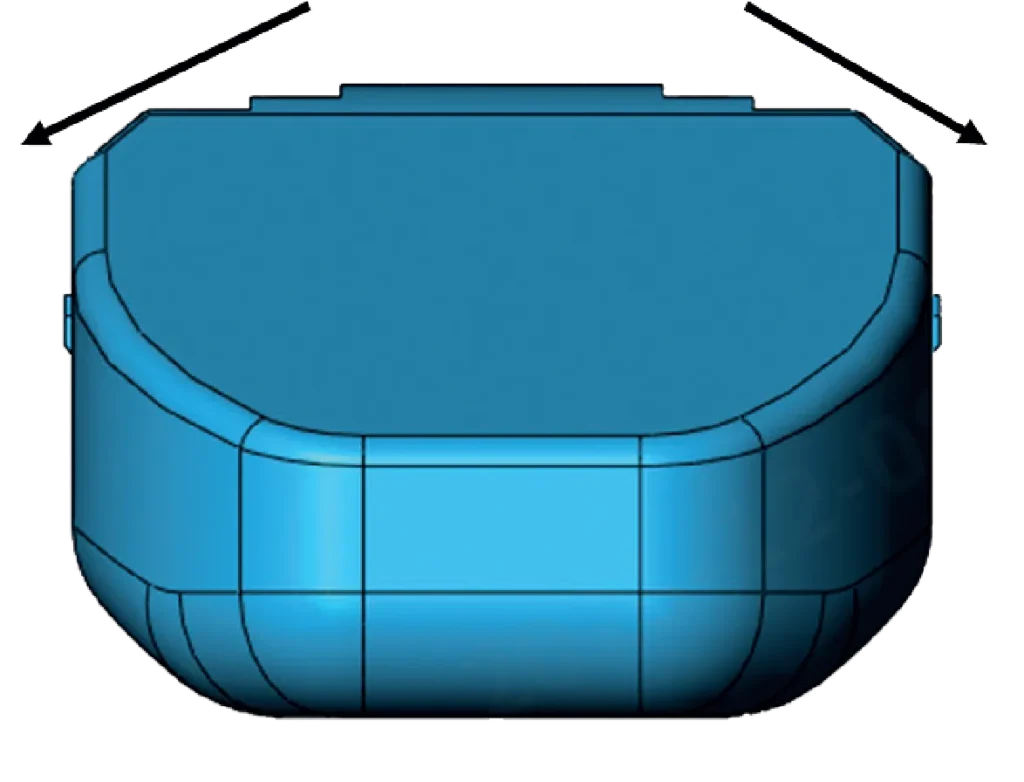

Triple-tiered reload surface

0,15mm step difference design. The double-sided slanted structure makes the tissue slide on both sides after being compressed for better thickness and proper staple forming.
Product Code
Shaft Length
(mm)
Working length max (mm)
EXTERNAL DIAMETER (mm)
UNITS PER BOX
FELC50
60
280
12.5
3
FELC150
160
380
12.5
3
FELC250
260
480
12.5
3
download pdf
The Frankenman Academy is proud to promote several training courses in numerous surgical disciplines with expert faculty to cover both didactic elements and “hands on” skills workshops.

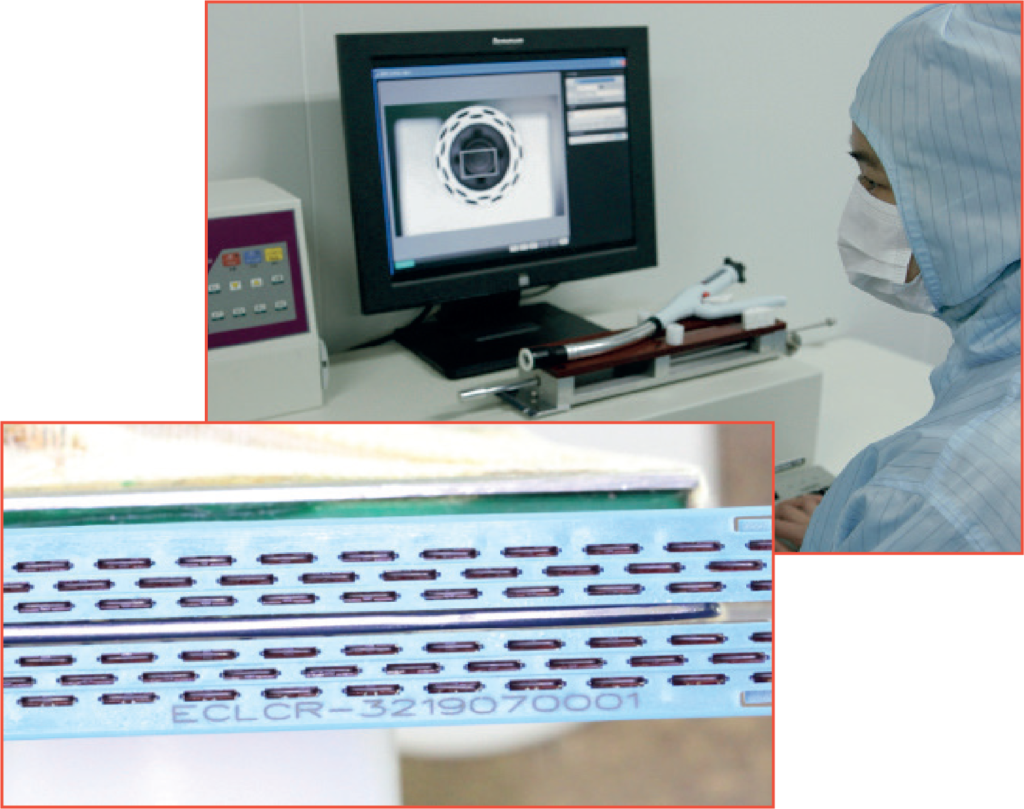

QUALITY CONTROL

We pride ourselves on world leading continual quality improvement processes. ALL stapling devices and reloads have a unique serial number, as well a batch/lot number, to allow for more accurate tracking and traceability.
